Ideal for all carrier bands Telstra, Optus and Vodafone 3G/ 4G.
Future-proof your vehicle installations with this high grade, ruggedised Omni Trucker Antenna.This premium grade cellular antenna will satisfy 3G and 4G capabilities for all the major networks in Australia and can be used for commercial and industrial 3G and 4G applications.
FEATURES
- 4 dBi gain across lower bands 698-960 MHz
- 6 dBi gain across upper bands 1710-2170 MHz
- can be mounted directly on a bullbar
- Suitable for all mobile carriers
- SMA-Male connector
- Made of ruggedised fibreglass to withstand 210km/h winds
- Black antenna
- Bracket additional

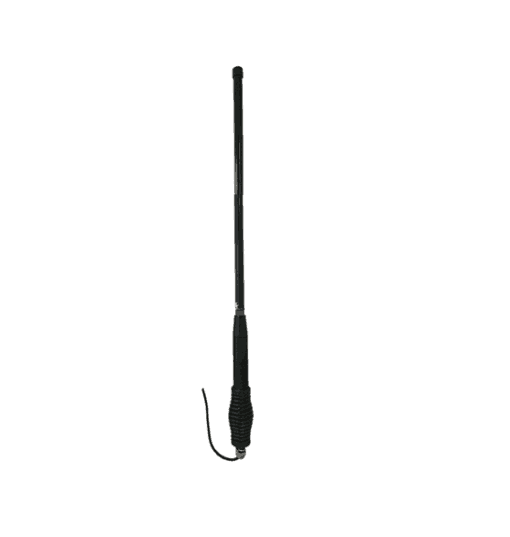

The Blackhawk Omni Trucker Edge Compact at 68cm will provide the perfect solution for voice and data applications where high gain antennas are required while on the move. Combine with a Cei-Fi GO in your vehicle to never be out of contact when away from home.
Specifications
ELECTRICAL SPECIFICATIONS
| Frequency Range | 698-960 MHz / 1710-2170 MHz |
| Input Impedance | 50 Ω |
| Peak Gain | 4 / 6 dBi |
| VSWR | ≤2.0:1 / ≤2.0:1 |
| Polarisation | Vertical, linear |
| Horizontal Beamwidth | 360° (omnidirectional) |
| Vertical Beamwidth | 48 / 23° |
| Maximum Input Power | 50 W |
MECHANICAL SPECIFICATIONS
| Input Connector | SMA Male |
| Cable | 4 m PT240 cable |
| Lightning Protection | DC Ground |
| Antenna Construction | Fibreglass radome, heavy duty spring base |
| Dimensions | 680 x Ø20 mm |
| Weight | 1.5 kg |
| Rated Wind Velocity | 210 km/h |
| Operating Temperature | -40 to +65°C |
