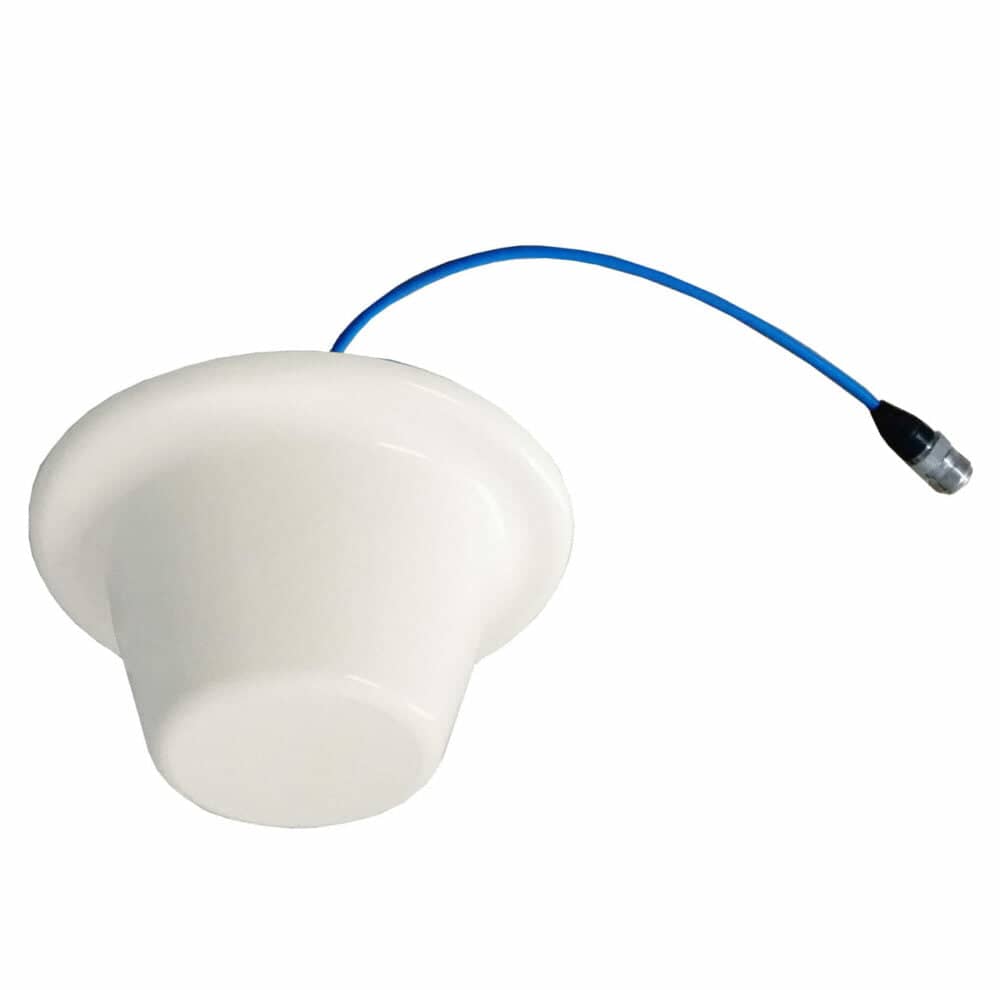

Powertec 4G-5G Ceiling Dome Antenna, 698 to 4000 MHz, N Female

The Powertec 4G-5G Ceiling Dome Antenna, 698 to 4000 MHz, N Female offers exceptional performance for both 4G and 5G networks. This high-gain antenna is ideal for enhancing signal strength within buildings, ensuring reliable connectivity for a variety of indoor applications.

Key Features:

2 dBi gain across lower bands 698 to 960 MHz
5 dBi gain across mid-bands 1695 to 4000 MHz
Vertical Polarisation
Low PIM RG-402 cable tail with N female connector
50 Ω Input Impedance
50W max. Input Power
DC Ground Lightning Protection

Broad Frequency Range

Designed to operate across an extensive frequency spectrum, this antenna supports frequencies from 698 MHz to 4000 MHz. It provides optimal signal reception and transmission for both 4G and 5G networks, making it a versatile choice for modern communication needs.

High-Gain Performance

The Powertec Ceiling Dome Antenna features impressive gain levels, with 2.0 dBi at lower frequencies (698-960 MHz), 5.0 dBi in the mid-range (1710-2700 MHz), and 5.5 dBi at higher frequencies (3300-4000 MHz). This high-gain performance ensures strong and stable signal coverage throughout your indoor space.

Excellent Beamwidth and Polarization

Offering a horizontal beam width of 360° and vertical beam widths of 85°, 54°, and 28° across different frequency ranges, this antenna provides comprehensive coverage. The vertical polarisation ensures optimal signal alignment for various communication devices.

Durable and Reliable Construction

Constructed with a UV-stabilised ABS radome and an aluminium reflector, this antenna is built to withstand harsh conditions. It operates effectively within a temperature range of -40 °C to +65 °C, making it suitable for various indoor environments.

Low PIM for High-Quality Signal

The antenna features a low Passive Intermodulation (PIM) performance, with a third-order PIM level of ≤-150 dBc at 2×20W. This ensures minimal signal interference and maintains high-quality communication, essential for maintaining clear and reliable connections.

Easy Installation and Compatibility

With a compact size of Ø186 x 86 mm and a lightweight design of just 0.25 kg, this ceiling dome antenna is easy to install. It comes with an N Female connector, ensuring compatibility with a range of equipment, and includes DC ground lightning protection for added safety.

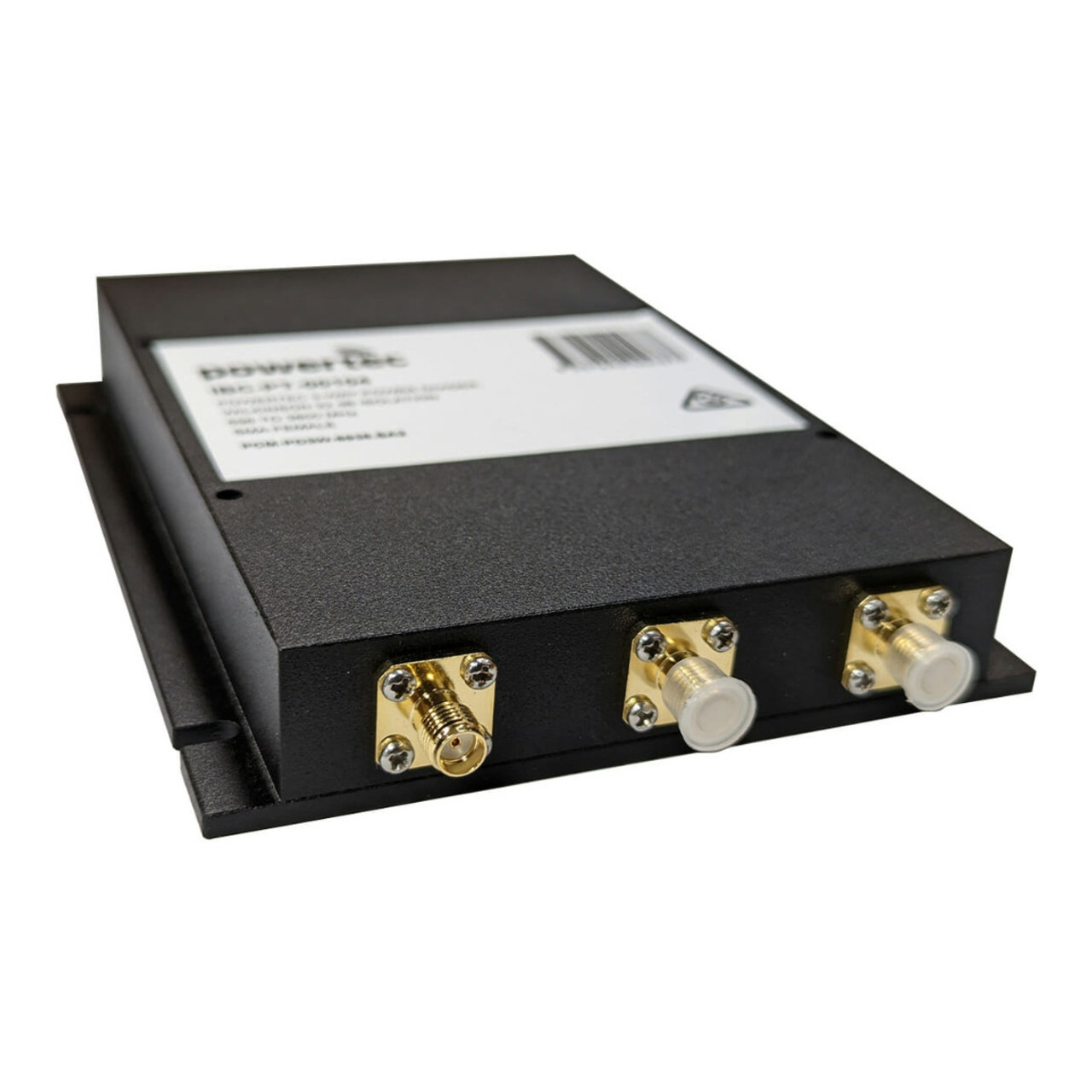

Powertec RF Power Divider 3-Way, 698 to 3800 MHz, SMA Female, Wilkinson, 18dB isolation

The Powertec RF Power Divider 3-Way is expertly designed to efficiently split RF signals across a wide frequency range of 698 to 3800 MHz. This precision-engineered device employs SMA Female connectors, ensuring secure and low-loss connections. Its Wilkinson architecture allows for uniform power distribution and optimal impedance matching, making it ideal for various RF applications.

Key Features:

698 to 3800 MHz Frequency Range
SMA Female connectors
Wilkinson Design
22 dB Isolation
Compact Design

High Isolation for Signal Integrity

Featuring an impressive isolation rating of 22 dB, this power divider effectively minimises unwanted signal coupling and interference between output ports. This high level of isolation is essential for maintaining clean and undistorted signals, enhancing overall system performance. The Powertec RF Power Divider 3-Way is perfect for applications where signal integrity is paramount.

Durable Construction for Reliability

Constructed with high-quality materials, the Powertec RF Power Divider 3-Way is built to withstand demanding environments. Its robust design ensures reliable and seamless signal distribution, making it a dependable choice for both indoor and outdoor installations. This durability translates into improved system performance and reduced maintenance needs.

Versatile Applications

The versatility of the Powertec RF Power Divider 3-Way makes it suitable for a wide range of applications, including telecommunications, broadcasting, and networking. Its ability to deliver reliable signal distribution while minimising interference enhances the efficiency of RF systems. Whether in commercial or industrial settings, this power divider is an excellent addition to any RF setup.

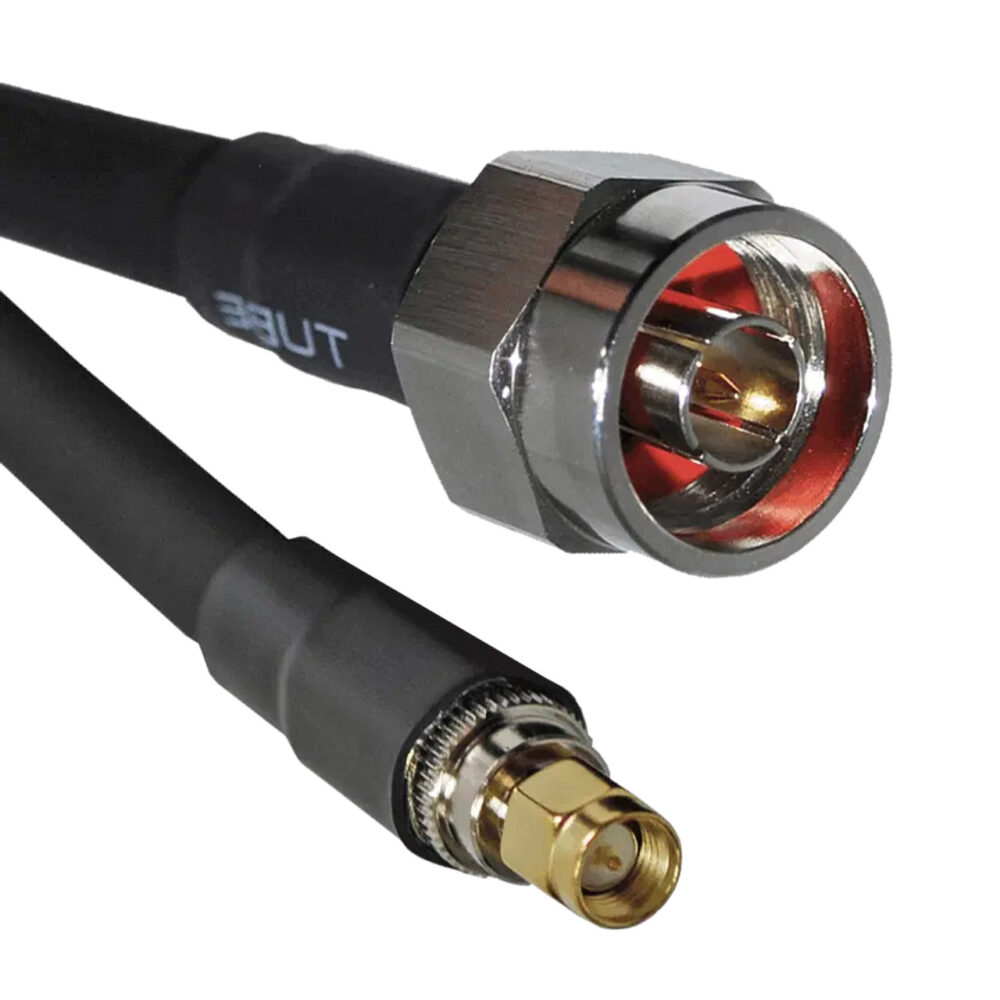

Powertec’s N Male to SMA Male feeder cables are manufactured from high performance PTL-400 coaxial cable. PTL-400 is a medium-sized 10.29 mm diameter cable designed for wireless transmission systems up to 6 GHz.

This is one of the most popular cable types, used to connect roof-mounted antennas that have an N Female interface down into a repeater or 4G modem, or any other device with an SMA Female interface. It also makes for a general-purpose RF cable that can be connected to a range of wireless equipment using a suitably matched jumper or patch cable.

Unlike larger connectors, the SMA Male connector’s 8 mm diameter allows the cable assembly to be easily fed through roof penetrations. The cable is very durable, designed in Queensland with the harsh Australian environment in mind.
