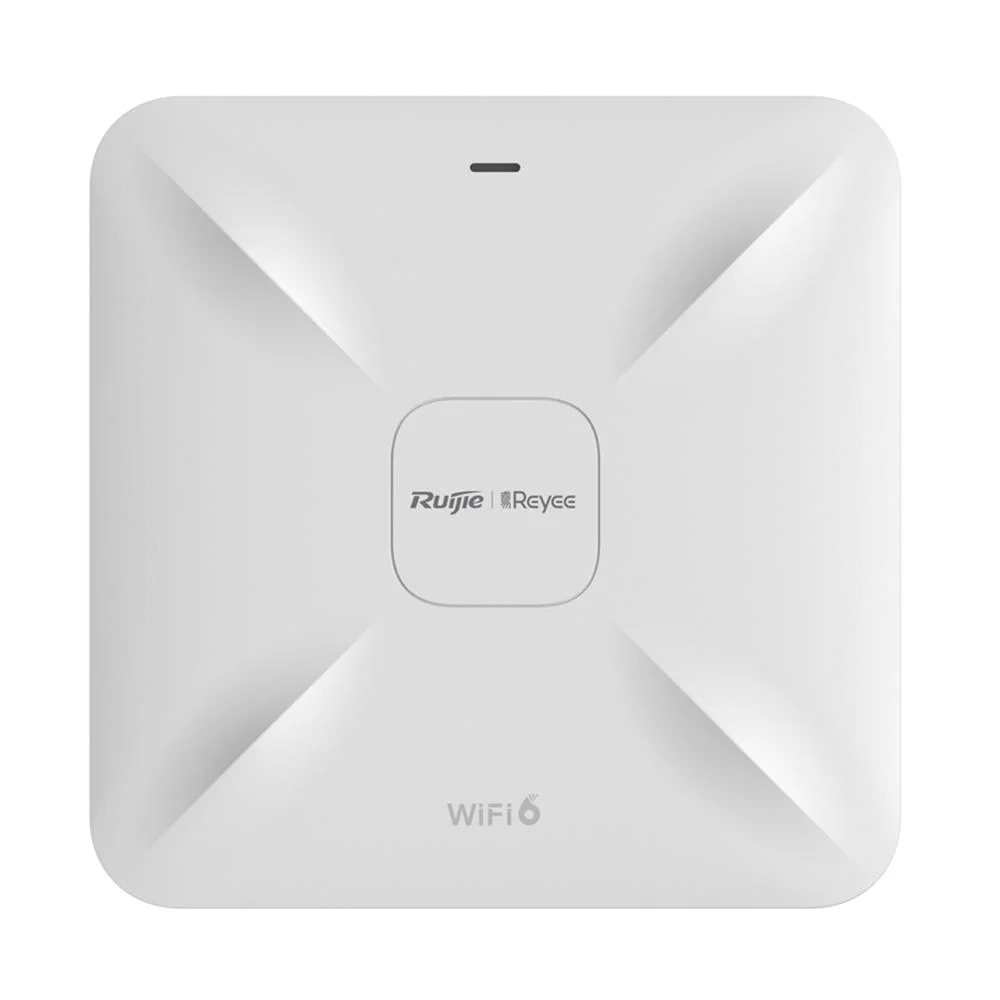

Ruijie Reyee RG-RAP2260(G) is a high-performance entry Wi-Fi 6 AP for indoor large-area Wi-Fi coverage scenarios. The device supports 802.3af/at PoE and 12V DC local power supply. The dual LAN ports design facilitates the expansion of third-party devices to meet the needs of more networking scenarios. Compliant with 802.11a/b/g/n/ac/ax Wi-Fi protocol, RG-RAP2260(G) supports MU-MIMO dual-stream technology and offers built-i n omnidirectional antennas. It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 574Mbps at 2.4GHz, 1201Mbps at 5GHz and up to 1775Mbps per AP. Its coverage of over 20 meters makes it an ideal choice for many wireless scenarios, especially in offices, commercial industry, hotels, service scenarios, etc.
FEATURES
- The device supports 802.3af/at PoE and 12V DC local power supply
- Supports MU-MIMO dual-stream technology
- Built-in omnidirectional antennas
- Operates concurrently at 2.4GHz and 5GHz
- Provides high-speed wireless access of 574Mbps at 2.4GHz and 1201Mbps at 5Ghz.
- Coverage of over 20 meters
| Model | RG-RAP2260(G) |
| Hardware specifications | |
| Radio | Dual-stream dual-band |
| Protocol | Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n |
| Operating Bands | 802.11b/g/n/ax ：2.4G ~ 2.4835GHz |
| 802.11a/n/ac/ax ： 5G：5.150～5.350GHz，5.725～5.850GHz (country specific) | |
| Antenna | Internal antennas（2.4G: 3dBi，5G: 3dBi） |
| Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO |
| Max Throughput | Up to 574Mbps at 2.4G |
| Up to 1201Mbps at 5G | |
| 1.775Gbp per AP | |
| Dimensions | 194mm×194mm×35mm (excluding mounting kits) |
| Weight | 0.56kg (excluding mounting kits) |

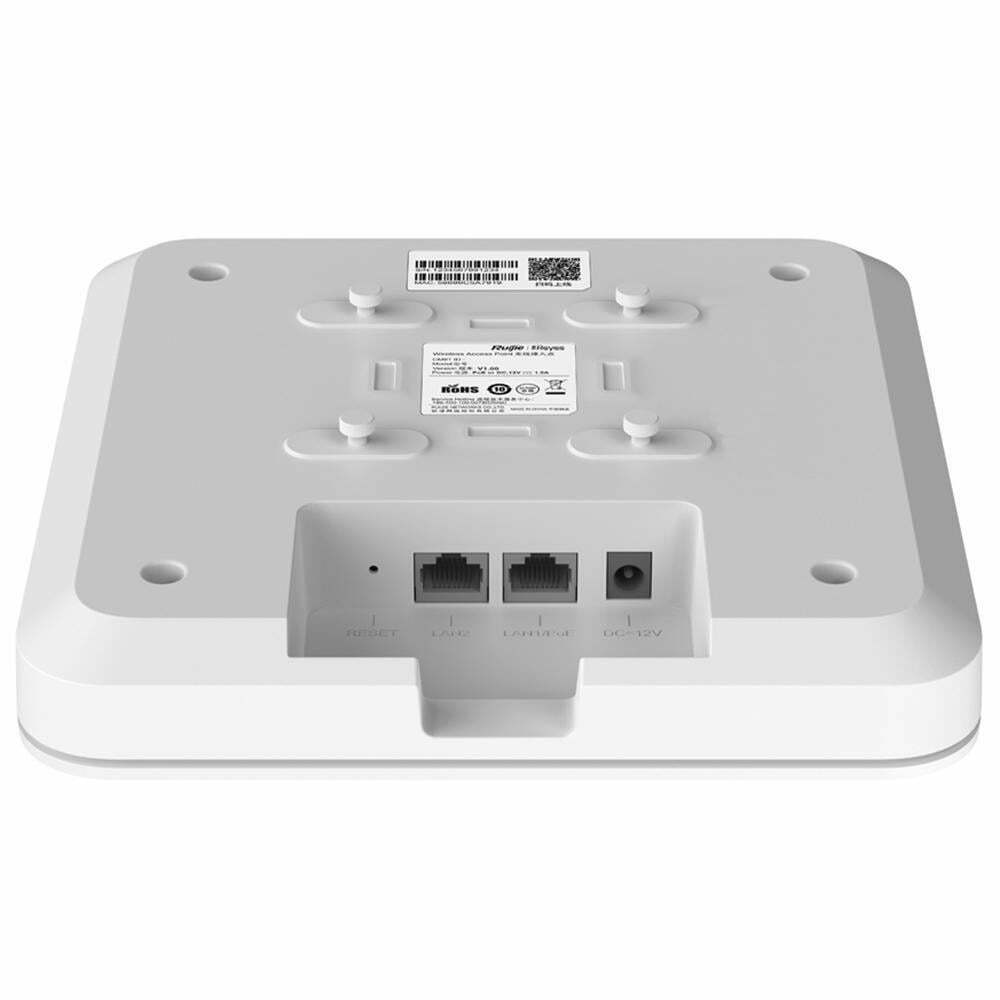

| Service Ports | 2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoE |
| LED Indicator | Single indicator (green light) |
| Power Supply | Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory) |
| 802.3af/802.3at PoE | |
| Power Consumption | ≤ 15.3W |
| Environment | Operating temperature: 0°C～40°C |
| Storage temperature: -40°C～70°C | |
| Operating humidity: 5％～95％（non-condensing） | |
| Storage humidity: 5％～95％（non-condensing） | |
| Installation | Ceiling/wall-mountable |
