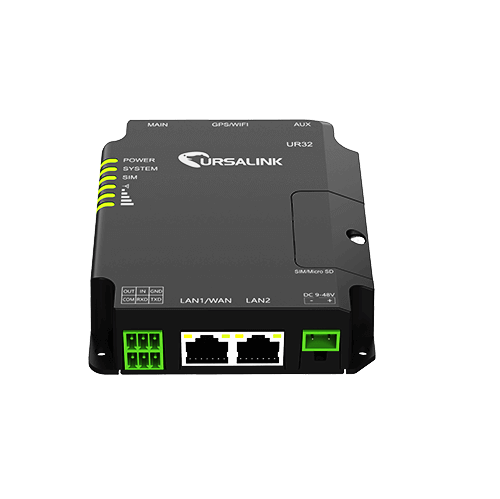

MILESIGHT UR32-L00AU-W LTE ROUTER 2XRJ45, WIFI, RS232

$284.90

13 in stock

SKU: M2M-UR-00009 Category:
Share:

The UR32 is specially designed to be low-cost and highly efficient. The pocket-sized design allows it to easily fit into small cabinets or machines where space is limited. Supports all Australian 3G and 4G bands including B28 700 MHz.

  • 1x WAN + 1x LAN OR 2x LAN
  • Equipped with 2x 10/100 Ethernet ports and 1x RS232/RS485 terminal block interface
  • With a built-in LTE Cat-4 modem, it supports dual SIM backup for robust, reliable cellular communication.
  • Compact and rugged design with a wide operating temperature range (-40 to +70°C)
  • 2x SMA Female connectors for 4G MIMO, 1x SMA Female for WiFi (SISO)
  • Open VPN/IPsec/PPTP/L2TP/DMVPN/GRE

The UR32 makes for a highly economic modem which has an essentials-only featureset that focuses on providing reliable 4G internet connectivity. The unit’s Cat-4 LTE chipset provides data performance up to a 150 Mb/s theoretical max (20 to 30 Mb/s typically) and typically used as a gateway for industrial equipment which can connect via the device’s RJ45 or terminal block interfaces, supporting RS232, RS485, and digital IO. The unit can create a basic WiFi hotspot for connectivity to wireless devices.

Ursalink LTE Router – UR32-L00AU-W

WIRELESS
Cellular TechnologyCat-4 – 3G/4G
WiFi2.4 GHz (802.11 b/g/n)
GPSΧ
BluetoothΧ
PORTS
Ethernet Ports2 x 10/100
LAN/WAN1x WAN + 1x LAN OR 2x LAN
WAN FailoverWAN + 2nd SIM
RS232
RS485Χ
Digital I/O1 x In, 1 x Out
Analog InputΧ
USBΧ
Mobile antenna2 x SMA
WiFi antenna1 x RP-SMA
GPS antennaΧ
Voice Port (FXS)Χ
PROCESSING
CPU512 MHz
RAM128 MB
Flash Memory128 MB
SLOTS
SIM card slots2x 2FF
Micro SD Slot
BAND SUPPORT
LTEB1/B2/B3/B4/B5/B7/B8/B28/B40
(700/850/900/1700/1800/1900/2100/2300/2600MHz)
WCDMAB1/B2/B5/B8
(850/900/1900/2100MHz)



Downloads

Ursalink Models Comparison List  Ursalink UR32 Datasheet   Ursalink UR32 Quick Start Guide

Weight10 kg
