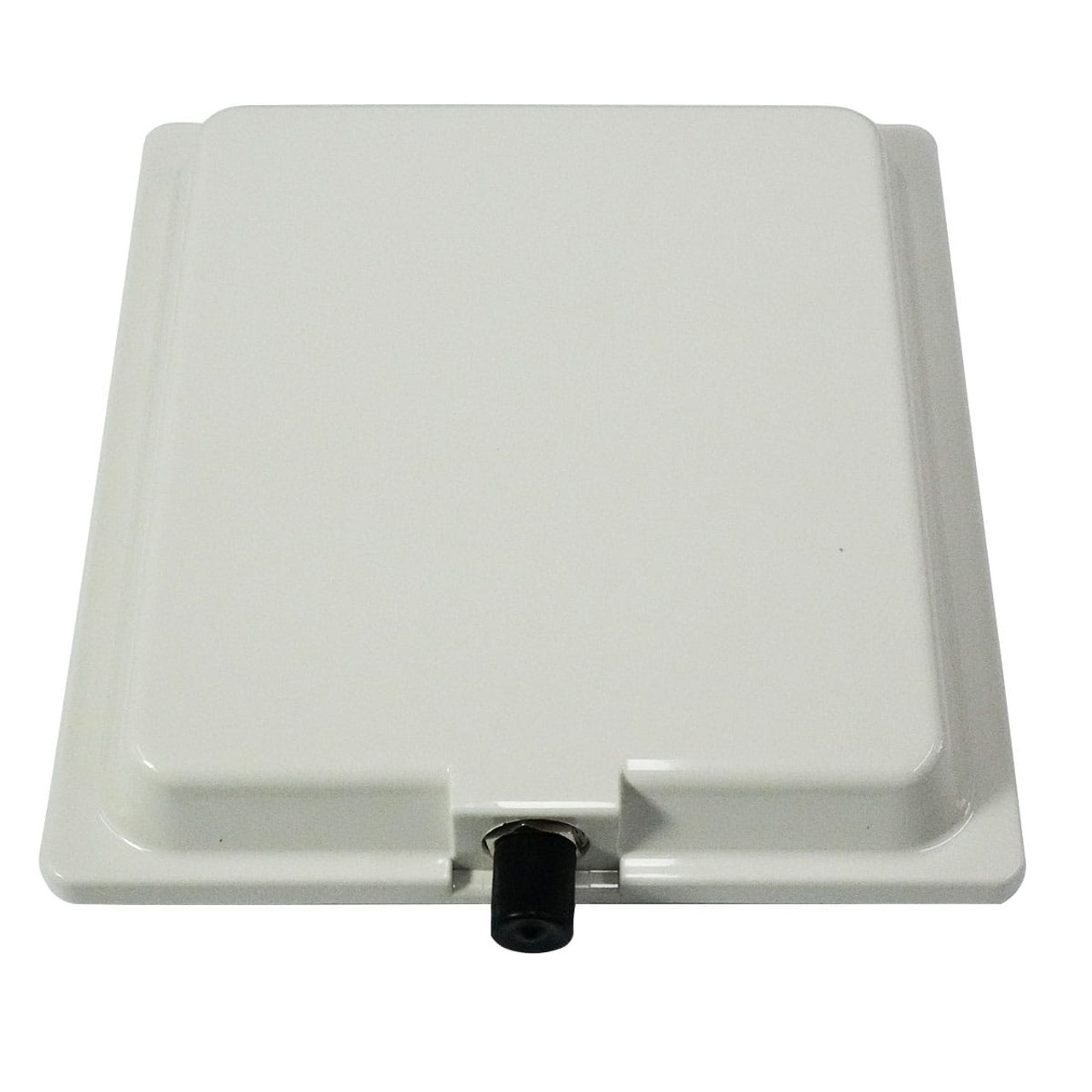

Up-To-Date Multi Band Panel Antenna covers all the bands for LTE 700 MHz, cellular bands, as well as ISM, WLAN, GSM1800, UMTS and Bluetooth.
The antenna is aesthetic, small and has unobtrusive profile that blends easily with any environment.
The antenna can be easily used either for Indoor or Outdoor Applications and features different mounting options.
ELECTRICAL SPECIFICATIONS
Frequency Range 698-960 / 1710-2700MHz
Impedance 50 Ohm
VSWR <2-1.7
Gain 5/6.5 dBi
Max Input Power 10W
Polarization: Linear & Vertical
3 dB Beam-Width, H-Plane, typ. 130/80
3 dB Beam-Width, E-Plane, typ. 70/45
MECHANICAL SPECIFICATIONS
Dimensions 231 x 215 x 37.5 mm
Connector N-Type, Female at bottom (can be installed upside down)
Weight 500g
Mounting Wall Mountable and Az/El Adjustable MNT-22 Mount
Radome UV Protected Polycarbonate
