The Blackhawk Mini Omni is a short 4G-5G Wideband antenna which provides modest performance across the entire 4G LTE and 5G Mid-Band ranges. This single-port antenna operates from 700 to 4000 MHz in three bands – 698 to 960 MHz, 1695 to 2700 MHz, and 3300 to 6000 MHz. This provides complete coverage of 3G, 4G, and 5G frequencies throughout Australia and networks globally.

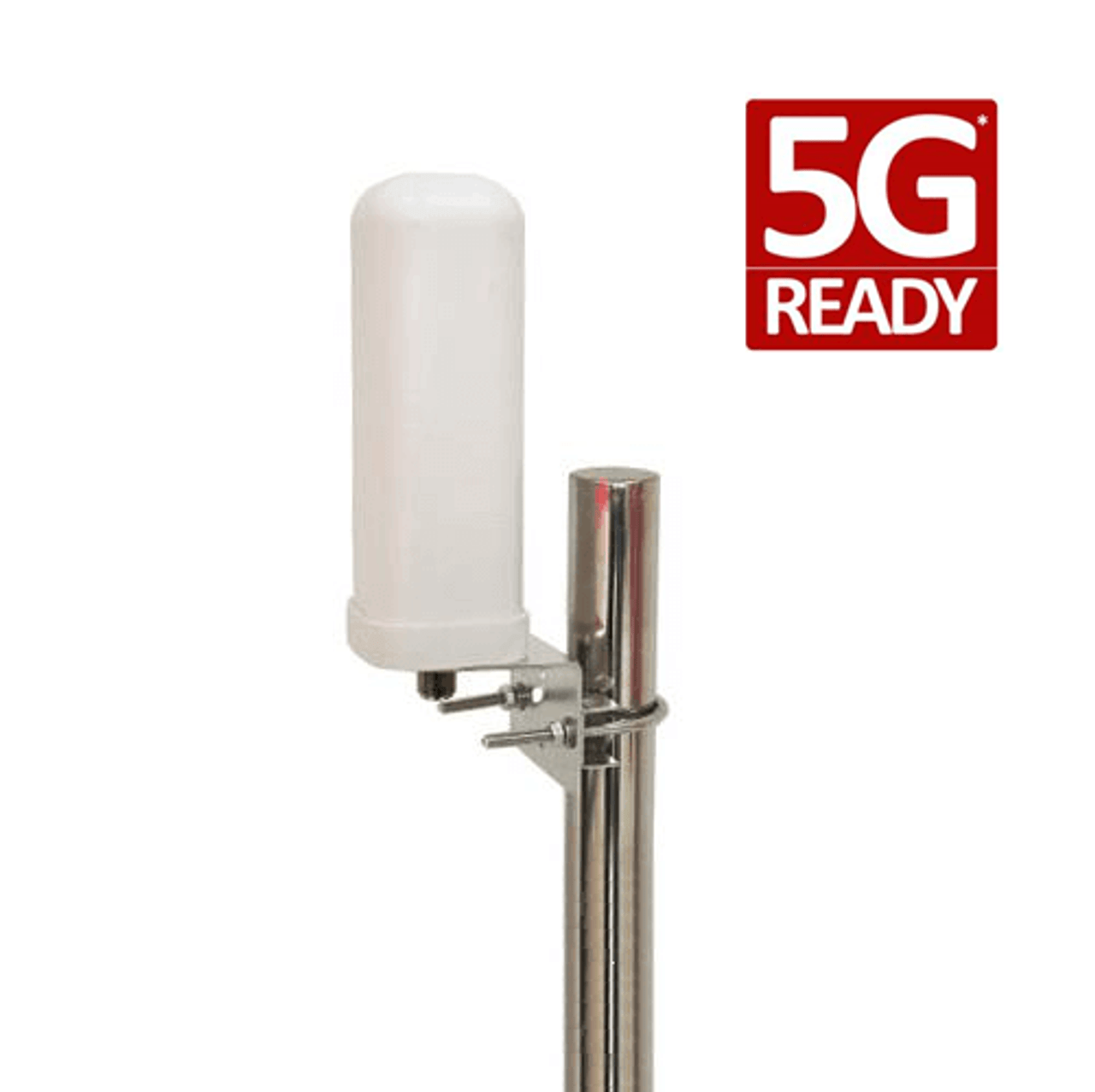

Measuring only 19cm in height, the key feature of this rooftop antenna is its compact design for those who want to minimise the visual impact on their building. Ideal for apartments and multi-level office buildings in built-up areas. The antenna has a UV-stable white radome and discreet pole mounting bracket.

Description:
1. Compatible with 5G mobile broadband modem routers, simple to install, no software needed.
2. Use the 5G modem in combination with SMA Male / TS9 / CRC9
3. Compatible list: 3G 4G router modems.
4. Available for indoor or outdoor use to enhance and maintain excellent signal quality.
5. Frequency range: 600 – 6000 MHZ
6. Standing wave ratio: < 2.0
7. Gain: 10 – 12 dBi
8. Polarization type: Vertical
9. Radiation: Omnidirectional
10. Maximum power input: 10W
11. Input impedance: 50 ohms
12. Connector type: SMA male / TS9
13. Cable model: RG 58 (BEST) 100% cooper
14. Cable length: 5M

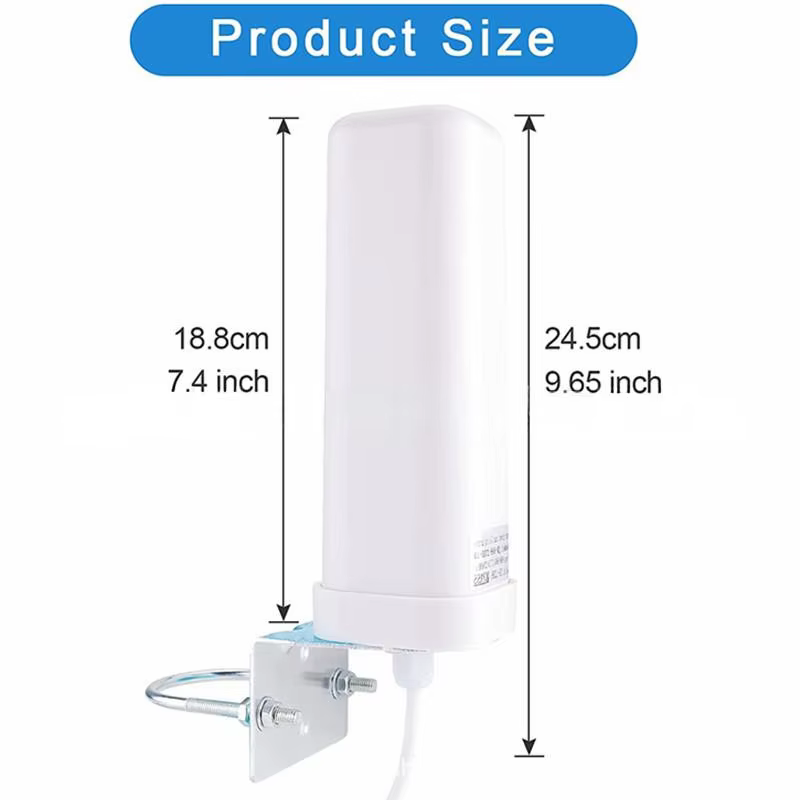

15. Size: 61 * 254mm
16. Material: Metal + Plastic
17. Color: White
18.Weight: 570 grams
