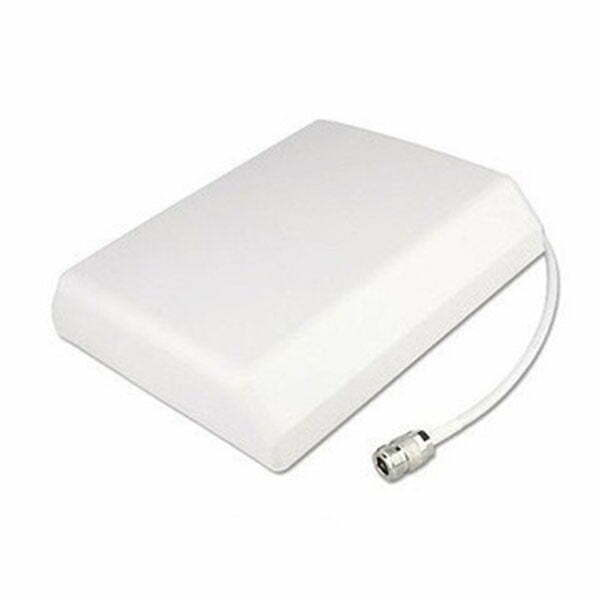

Blackhawk Wall Mount 698-2700 7/8dBi Panel Antenna

$88.00

4 in stock

SKU: ANT-BH-WAL Category:
Share:

All Blackhawk Antennas come with a 5 year warranty.

The Blackhawk Indoor Wall Mount Antenna is designed to operate with all mobile carriers in mind, regardless of what frequency they operate on.

Offering a 7dB gain this antenna is suitable as an indoor antenna or panel antenna, that can be mounted on a wall for repeater applications.

  • Provides a 7dbi gain for 698-960 MHz
  • Provides a 8dbi gain for 1710-2600 MHz

Specifications

Frequency range698-960 MHz / 1710-2600MHz
VSWR<1.5
Input impendance50Ω
Gain 7 / 8dBi
Polarization typeLine polarization
E-plane beamwidth65°
H-plane beamwidth90°
F/B ratio≥23dB
Max power50W
Lightning protectionDC ground
Connector TypeN female
RG58/U cable L=300mm
Weight600g
Dimensions210mm×180mm×44mm
Radome materialUV-Resistance ABS
Radome colorWhite
Working temperature-40℃~+60℃



Weight3 kg
